Sampler

class pyflp.channel.Sampler

Bases: _SamplerInstrument

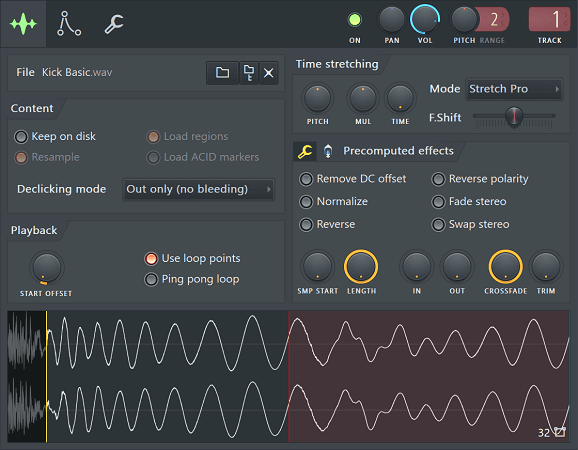

Represents the native Sampler, either as a clip or a channel.

arp

Miscellaneous functions -> Arpeggiator

au_sample_rate: int | None

AU-format sample specific.

content: Content

Sample settings ‣ Content

cut_group

Cut group in the form of (Cut self, cut by).

Miscellaneous functions ‣ Group

Hint

To cut itself when retriggered, set the same value for both.

delay

Miscellaneous functions -> Echo delay / fat mode

property envelopes: dict[Literal['Panning', 'Volume', 'Mod X', 'Mod Y', 'Pitch'], pyflp.channel.Envelope] | None

An Envelope each for Volume, Panning, Mod X, Mod Y and Pitch.

Envelope / instruement settings

filter: Filter

fx: FX

Sample settings (page) ‣ Precomputed effects

insert

The index of the Insert the channel is routed to according to FL.

“Current” insert = -1, Master = 0 and so on… till Mixer.max_inserts.

level_adjusts

Miscellaneous functions -> Level adjustments

property lfos: dict[Literal['Panning', 'Volume', 'Mod X', 'Mod Y', 'Pitch'], pyflp.channel.SamplerLFO] | None

An LFO each for Volume, Panning, Mod X, Mod Y and Pitch.

Envelope / instruement settings (page)

property pitch_shift: int | None

-4800 to +4800 (cents).

Raises:

PropertyCannotBeSet – When a ChannelID.Levels event is not found.

playback: Playback

Sample settings (page) ‣ Playback

polyphony

Miscellaneous functions -> Polyphony

property sample_path: Path | None

Absolute path of a sample file on the disk.

Sample settings (page) ‣ File

Contains the string %FLStudioFactoryData% for stock samples.

stretching: TimeStretching

Sample settings (page) ‣ Time stretching

time

Miscellaneous functions -> Time

property tracking: dict[str, pyflp.channel.Tracking] | None

A Tracking each for Volume & Keyboard.

Miscellaneous functions -> Tracking

class pyflp.channel.Content

Used by Sampler.

declick_mode: DeclickMode | None

Defaults to DeclickMode.OutOnly.

keep_on_disk: bool | None

Whether a sample is streamed from disk or kept in RAM, defaults to False.

load_regions: bool | None

Load regions found in the sample, if any, defaults to True.

load_slices: bool | None

Defaults to False.

resample: bool | None

Defaults to False.

class pyflp.channel.Envelope

A PAHDSR envelope for various Sampler paramters.

See also

Sampler.envelopes

amount: int | None

Linear. Bipolar.

Type	Value	Representation
Min	-128	-100%
Max	128	100%
Default	0	0%

attack: int | None

Linear.

Type	Value	Representation
Min	100	0%
Max	65536	100%
Default	20000	31%

attack_tension: int | None

Linear. Bipolar.

Type	Value	Representation
Min	-128	-100%
Max	128	100%
Default	0	0%

decay: int | None

Linear.

Type	Value	Representation
Min	100	0%
Max	65536	100%
Default	30000	46%

decay_tension: int | None

Linear. Bipolar.

Type	Value	Mix (wet)
Min	-128	-100%
Max	128	100%
Default	0	0%

enabled: bool | None

Whether envelope section is enabled.

hold: int | None

Linear.

Type	Value	Representation
Min	100	0%
Max	65536	100%
Default	20000	31%

predelay: int | None

Linear. Defaults to minimum value.

Type	Value	Representation
Min	100	0%
Max	65536	100%

release: int | None

Linear.

Type	Value	Representation
Min	100	0%
Max	65536	100%
Default	20000	31%

release_tension: int | None

Linear. Bipolar.

Type	Value	Mix (wet)
Min	-128	-100%
Max	128	100%
Default	-101	-79%

sustain: int | None

Linear.

Type	Value	Representation
Min	0	0%
Max	128	100%
Default	50	39%

synced: bool | None

Whether envelope is synced to tempo or not.

class pyflp.channel.Filter

Used by Sampler.

mod_x: int | None

Filter cutoff. Min = 0. Max = 256. Defaults to maximum.

mod_y: int | None

Filter resonance. Min = 0. Max = 256. Defaults to minimum.

type: FilterType | None

Defaults to FilterType.FastLP.

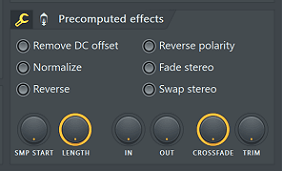

class pyflp.channel.FX

Pre-computed effects used by Sampler.

See also

Sampler.fx, Reverb

boost: int | None

Pre-amp gain. Defaults to minimum value.

Min	Max
0	256

clip: bool | None

Whether output is clipped at 0dB for boost.

crossfade: int | None

Linear. Defaults to minimum value

Type	Value	Representation
Min	0	0%
Max	256	100%

cutoff: int | None

Filter Mod X. Defaults to maximum value. Min = 16. Max = 1024.

fade_in: int | None

Quick fade-in. Defaults to minimum value. Min = 0. Max = 1024.

fade_out: int | None

Quick fade-out. Defaults to minimum value. Min = 0. Max = 1024.

fade_stereo: bool | None

Properties derived from enum flags.

fix_trim: bool | None

Trim ‣ Fix legacy precomputed length.

Has no effect on the value of trim.

freq_tilt: int | None

Shifts the frequency balance. Bipolar.

Min	Max	Default
0	256	128

inverted: bool | None

Named Reverse polarity in FL’s interface.

length: float | None

Min = 0.0, Max = 1.0. Defaults to minimum value.

Named SMP START in FL’s interface.

normalize: bool | None

Maximizes volume without clipping by normalizing peaks to 0dB.

pogo: int | None

Pitch bend effect. Bipolar.

Min	Max	Default
0	512	256

remove_dc: bool | None

Whether DC offset (if present) is removed.

resonance: int | None

Filter Mod Y. Min = 0. Max = 640. Defaults to minimum value.

reverb: Reverb

reverse: bool | None

Whether sample is reversed or not.

ringmod: Tuple[int, int] | None

Ring modulation returned as a tuple of (mix, frequency).

Limits for both:

Min	Max	Default
0	256	128

start: float | None

Min = 0.0, Max = 1.0. Defaults to minimum value.

Always set to 0.0 irrespective of the knob position unless a sample is loaded.

stereo_delay: int | None

Linear. Bipolar.

Min	Max	Default
0	4096	2048

swap_stereo: bool | None

Whether left and right channels are swapped or not.

trim: int | None

Silence trimming threshold. Defaults to minimum. Linear.

Type	Value	Representation
Min	0	0%
Max	256	100%

class pyflp.channel.Playback

Used by Sampler.

ping_pong_loop: bool | None

Properties bound directly to one of fixed size or string events.

start_offset: int | None

Linear. Defaults to minimum value.

Type	Value	Representation
Min	0	0%
Max	1072693248	100%

use_loop_points: bool | None

Properties derived from enum flags.

class pyflp.channel.Reverb

Precalculated reverb used by Sampler.

property mix: int | None

Mix % (wet). Defaults to minimum value.

Min	Max
0	256

property type: ReverbType | None

class pyflp.channel.SamplerLFO

A basic LFO for certain Sampler parameters.

See also

Sampler.lfos

amount: int | None

Linear. Bipolar.

Type	Value	Representation
Min	-128	-100%
Max	128	100%
Default	0	0%

attack: int | None

Linear.

Type	Value	Representation
Min	100	0%
Max	65536	100%
Default	20000	31%

predelay: int | None

Linear. Defaults to minimum value.

Type	Value	Representation
Min	100	0%
Max	65536	100%

retrig: bool | None

Whether LFO phase is in global / retriggered mode.

shape: LFOShape | None

Sine.

Type:

Sine, triangle or pulse. Default

speed: int | None

Logarithmic. Provides tempo synced options.

Type	Value	Representation
Min	200	0%
Max	65536	100%
Default	32950	50% (16 steps)

synced: bool | None

Whether LFO is synced with tempo.

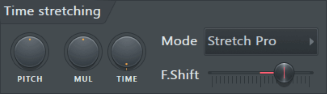

class pyflp.channel.TimeStretching

Used by Sampler.

mode: StretchMode | None

Properties obtained from a construct.Struct.

multiplier: float | None

Logarithmic. Bipolar.

Type	Value	Representation
Min	0.25	25%
Max	4.0	400%
Default	0	100%

pitch: int | None

Pitch shift (in cents). Min = -1200. Max = 1200. Defaults to 0.

time: MusicalTime | None

Returns a tuple of (bars, beats, ticks).

Enums

class pyflp.channel.DeclickMode

Crossfade = 5

Generic = 3

OutOnly = 0

Smooth = 4

Transient = 2

TransientNoBleeding = 1

class pyflp.channel.LFOShape

Used by LFO.shape.

Pulse = 2

Sine = 0

Triangle = 1

class pyflp.channel.ReverbType

Used by Reverb.type.

A = 0

B = 65536

class pyflp.channel.StretchMode

Auto = 5

E2Generic = 6

E2Mono = 8

E2Speech = 9

E2Transient = 7

E3Generic = 1

E3Mono = 2

Resample = 0

SliceMap = 4

SliceStretch = 3

Stretch = -1
